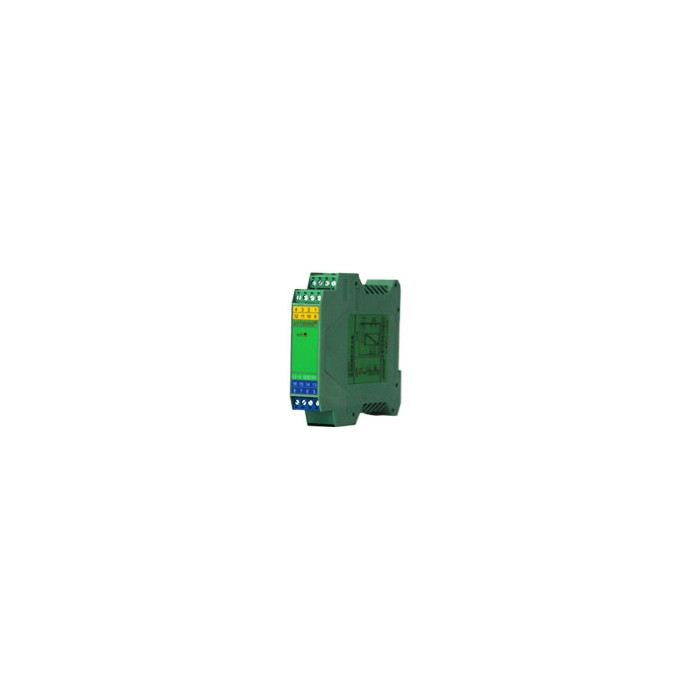

SLU-G22 Signal isolators /power suppliers

SLU-G22 Signal isolators  /power suppliers

SLU-G22 Signal isolators

/power suppliers

Input

As per details

Output

As per details

Dimension

25×80×80mm

Email: sales@transducersgroup.com

More details


SLU-G22 Signal isolators /power suppliers


1. Technical Parameters:
1)Main functions and Features
● Compact and insert-mounting
● Two signal channels are isolated from each other
● Input and output of each signal channels are isolated from each other
● With Span adjustments for output


2)Input
●  Current input:  Current: 4~20mA,
                          Input resistance: ≥500Ω


3) Output
●  Current output:  Current: 4~20mA,
                            Load resistance: ≤350Ω
●  Voltage output:  Voltage: DC 1~5V,
                            Load resistance: ≥10 KΩ


4) Environmental parameters:
● Temperature for operating: -5 ~ +55 ℃
● Humidity: 0%~95%RH (none congeal)


2. Performance index (to full span)
● Standard accuracy: ±0.2% FS
● Temperature drift: ±0.015%/℃
● Response time: ≤0.5s (0→90%)
● Power voltage affect: ±0.1%/permitted voltage range
● Insulated Resistance:
    Input, output and power supply are isolated from each other ≥100 MΩ/DC 500V
● Isolation intensity: input-output-power supply-ground:
    DC 1500V/1 minute (DC power)
    AC 1500V/1 minute (AC power)
●Load resistance affect: ±0.1%/250Ω
● Settling time: ≤3s



3. Construction and dimension
● Structure: compact, insert-mounting
● Connection: 3mm connection terminal
● Terminal screw material: Nickel plating around surface of iron
                                       (screw arrowed wrest<0.8N•m)
● Shell material: burn-bear colophony
● Isolation: channel isolation (input,output and power supply are isolated from each othe)
● Zero adjustments-range: -5 ~ +5%
● Span adjustments-range: 95~105%
● Power indicate light: green LED, light on when power supply
● Mounting: DIN rail
● Outline dimension (W×H×D): type S: 25×80×80mm
● Net weight: app. 150 g
