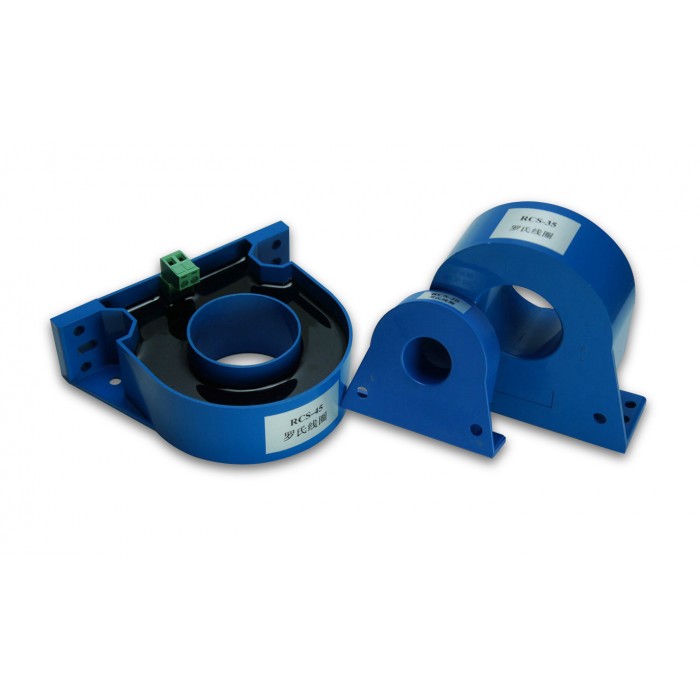

RCS High Accuracy Rogowski coil CT

RCS High Accuracy Rogowski coil CT

RCS High Accuracy Rogowski coil CT

Input

10A~8000A

Output

As per your request

Φ

Customized

Email: sales@transducersgroup.com

More details


RCS High Accuracy Rogowski coil CT


Overview

1.Suitable for current test from mA to Ma
2.Good linearity Bandwidth range
3.No two open risk
4.Over current capacity
5.Less susceptible to external electromagnetic interference
6.Low power cosumption
7.Light weight

Application

•Electric furnace
•Power analysis
•Lighting test
•Industrial electric meter
•Power monitoring
•Electric vehicle
•Relay protection
•Precise current measurement
•Harmonic control
•Wind power generation
•Welding, plating
•Inverter, servo

Specification

Rated current(rms) 10A~8000A
The full-scale output 1Vrms
Averload capacity 300%FS
Applicable temperature range -25℃~+70℃
Bandwidth 1Hz~1MHz
Phase error 90±0.1°
Accuracy ±0.3%reading accuracy
(5%~150% FS,25℃)
Temperature coefficient 0.05%/°C

Customized is available
