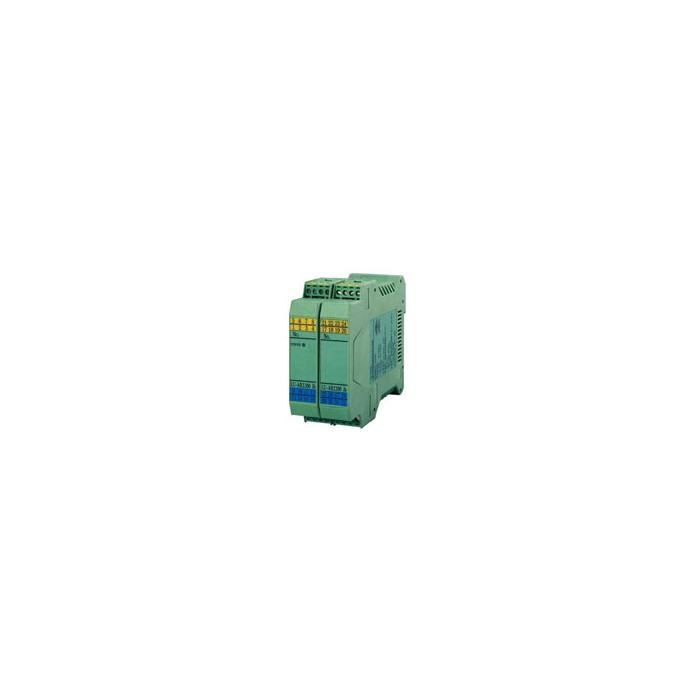

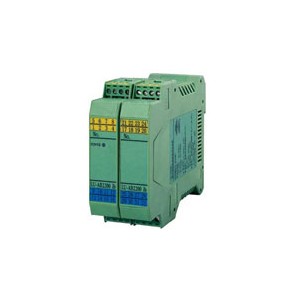

SLU-AB22 (TypeF) Safety Isolated Barriers

1.Technical Parameters:
1)Main functions and features
● Compact and insert-mounting
● One input & one output circuit Intrinsic Safety, [Exib]ⅡC if suitably certified.
● Transfer the DC signal to isolated standard process signal, and prevent hazardous energy from the instrinsically safety terminal into the hazardous area.
● With power indicator, Zero & Span adjustment for output signal
● Two independent input channels & output channels, each channel ”Input, output and power supply “are isolated from each other

2) hazardous-area signal
   1st channel:
●  Current input:  Current: 4~20mA,
                         Voltage supply: 18.5V~28.5V
                 Input resistance: 50Ω (built-in)
●  Voltage input:  Voltage: 1~5V,
                Input resistance: ≥50 KΩ
●  RTD input (Pt100):  Input signal: -200℃~+800℃

2nd channel:
●  Current output:  current: 4~20mA,
   Load resistance: ≤500Ω
●  Voltage output:  voltage: 1~5V,
   Load resistance: ≥10 KΩ

3) safe-area signal
1st channel:
●  Current output:  current: 4~20mA,
   Load resistance: ≤500Ω
●  Voltage output:  voltage: 1~5V,
   Load resistance: ≥10 KΩ

2nd channel:
●  Current input:  Current: 4~20mA,
   Input resistance: 50Ω
●  Voltage input:  Voltage: 1~5V,
   Input resistance: ≥50 KΩ

4) Intrinsic safety:
● Explosion-proof: [Exib]ⅡC
● Max. Voltage Um: 250V
● Max. Output voltage Uo: 30V
● Max. Output current Io:  30mA
● Max. External inductance Lo: 10mH
● Max. External Capacity Co: 0.066μF

5) Environmental parameters:
●Power supply: DC24V±10%, current consumption 5W when aftereffect Wpp < 10%
● Temperature: -20 ~ +60 ℃
● Humidity: 10%~85%RH (none congeal)

2. Performance index (to full span)
● Standard accuracy: ±0.2% FS
● Temperature drift: ±0.02%/℃
● Response time: ≤0.5s (0→90%)
● Power voltage affect: ±0.2%/permitted voltage range
● Insulated resistance:
  Input, output and power supply are isolated from each other ≥50 MΩ/DC 500V
● Isolation intensity: Input-output-power supply-ground:
  DC 1500V/1 minute (DC power)
  AC 1500V/1 minute (AC power)
● load resistance affect: ±0.2%/500Ω (when current output)
                              ±0.2% (when voltage output)
● Settling time: ≤3s

3. Construction and dimension
● Structure: compact, insert-mounting
● Connection: 3mm connection terminal
● Terminal screw material: Nickel plating around surface of iron
                         (screw arrowed wrest<0.8N•m)
● Shell material: burn-bear colophony
● Isolation: channel isolation (input/output and power supply are isolated from each other)
● Zero adjustments-range: -5 ~ +5%
● Span adjustments-range: 95~105%
● Power indicate light: green LED, light on when power supply
● Mounting: DIN rail
● Outline dimension (W×H×D): 45.5×113.5×100mm
● Net weight: app. 500 g
