中文SCHB-100KA Closed-loop Hall affect current sensor
- View full size
Home > SCHB-100KA Closed-loop Hall affect current sensor
|
Sensor Mod. |
CHB-100KA |
||||
|
Description |

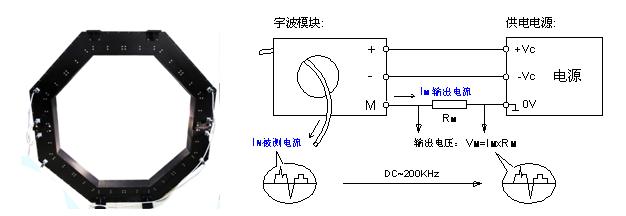

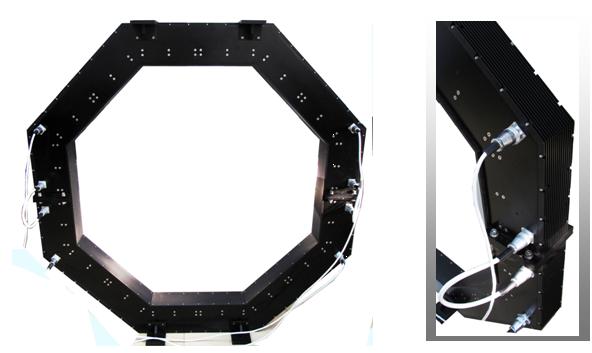

The SENSOR Module CHB-100KA is a closed loop Hall current sensor to measure 100,000ADC, AC or pulsed currents with a galvanic isolation between the primary and secondary circuits. The aperture can be opened by a structure of a split core for easy installation. |
||||
|
Closed-loop Hall Current Sensor: |
|||||
|
Type |
Nominal current |
Output current |
Accuracy |
Supply voltage |
Aperture |
|
IN（A） |
IM（mA） |
X（%） |
Vc（V） |
mm |
|
|
CHB-100KA |
100,000 |
20,000 |
±0.5% |
±48 |

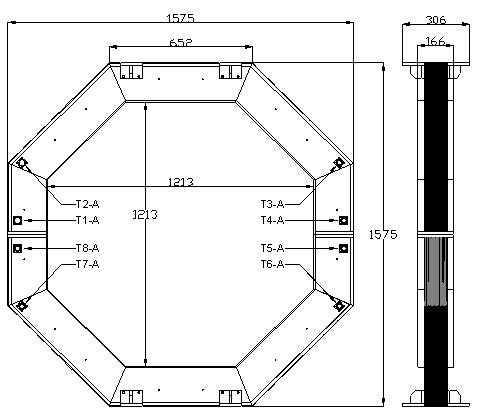

1213x1213 |
|
Specifications: |
|||||
|
Principle |
Closed loop Hall effect principle |
||||
|
Input current |
100,000A（DC、AC、Pulsed current） |
||||
|
Output current |
20,000mA |
||||
|
Turns ratio |
1:5000 |
||||
|
Frequency |
DC~20KHz |
||||
|
Accuracy |
±0.5% |
||||
|
Response time |
<10μS |
||||
|
Linearity |
<0.1% |
||||
|
Supply voltage |
±48V（±5%） |
||||
|
Consumption |
1KW |
||||
|
Isolation voltage |
Between primary and secondary circuit: 10KV RMS/50Hz/1min. |
||||
|
Operating temp. |
-10 …+50℃ |
||||
|
Applications |
The sensors are used in the industry field of power supplies, welding machines, converters, |
||||
|
|
industry auto-control, motor drives, electronic power system, railways, rectifiers systems etc. |
||||
|
||||||||||||||||||||||||||||||||||||||||||||||||
