Large Current Current Sesnor, Fiber Optic Current Sensor,100KA, 200KA, 250KA,1000KA, 1200KA

Large Current Current Sesnor, Fiber Optic Current Sensor,100KA, 200KA, 250KA,1000KA, 1200KA

 Fiber Optic Current Sensor,100KA, 120KA, 150KA, 160KA, 200KA, 250KA,300KA, 500KA, 600KA, 700KA, 800KA, 1000KA, 1200KA

Contact: sales@zntar.com, zntarjason@gmail.com

More details


Fiber Optic Current Sensor,100KA, 120KA, 150KA, 160KA, 200KA, 250KA,300KA, 500KA, 600KA, 700KA, 800KA, 1000KA, 1200KA

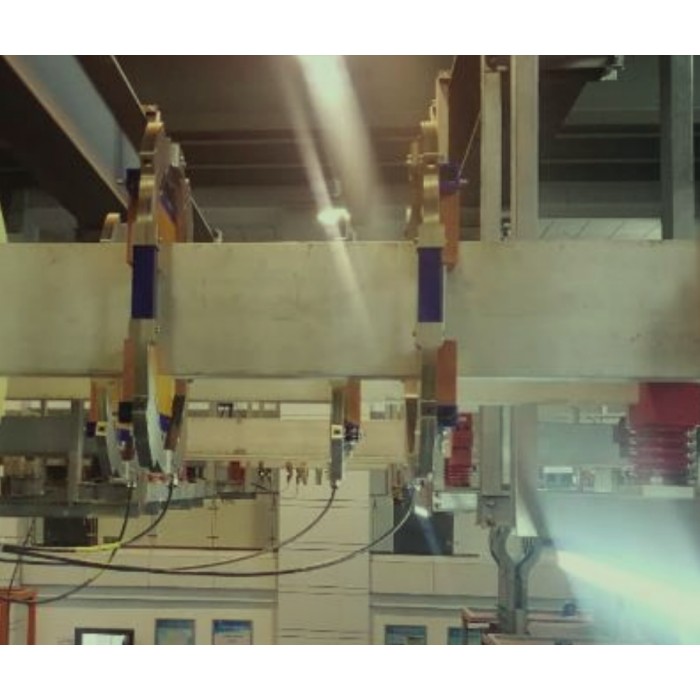

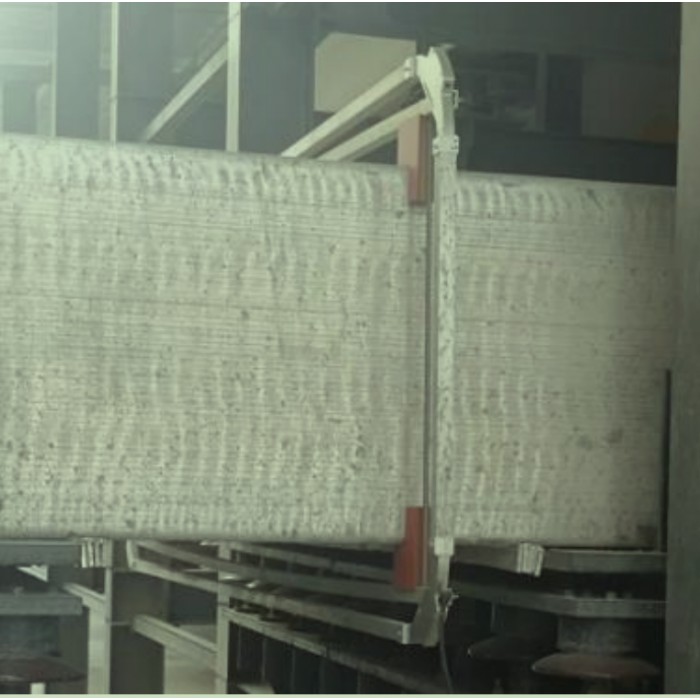

It is a high precision DC high current measurement device based on the Faraday Magneto-optical Effect and the Ampere Loop Theorem. The sensing optical fiber is fixedly mounted on the high current bus-bar through a skeleton and forms a closed optical fiber loop. The magnetic field generated by the high current in the bus-bar causes the phase shift of two light waves in the optical fiber, and the current value is measured by demodulating the phase shift of the light waves.

Key Features

Resistant to interference from stray magnetic fields, easy installation and commissioning, display and recording of operating status, designed for harsh environments

Application area

Suitable for a variety of large current measurement, especially metal smelting, electrochemistry and other fields of industrial large current accurate measurement and control.

Technical indicators

Rated current(Ir)

20/30/45/60/100/200/300/400/500/600

/700kA/1000KA/1200KA

Maximum range

120%lr

Measurement accuracy (10%~120% lr)

(Sensing ring temperature -10℃~+60℃)

0.1%

Measurement accuracy (10%~120% lr)

(Sensing ring temperature ~40℃~+70℃)

0.2%

Bandwidth (analog output)

0~100kHz

Response time (analog output)

≤300us



Environmental conditions

Sensing ring operating temperature

-40℃~+70℃

Collector operating temperature

-25℃~+55℃

Storage temperature

-40℃~+70℃

Protection grade

IP54

Humidity

5%~90%



Power supply

Operating power

AC 100V~240(50Hz/60Hz ) or DC 120V~360V

Power consumption

＜40W



Output methods

Digital output

Modbus RTU

Analog output (unipolar)

0~5V/0~10V and 4~20mA

Analog output (bipolar)

±5V/±10V and 4...12...20mA



Physical Size

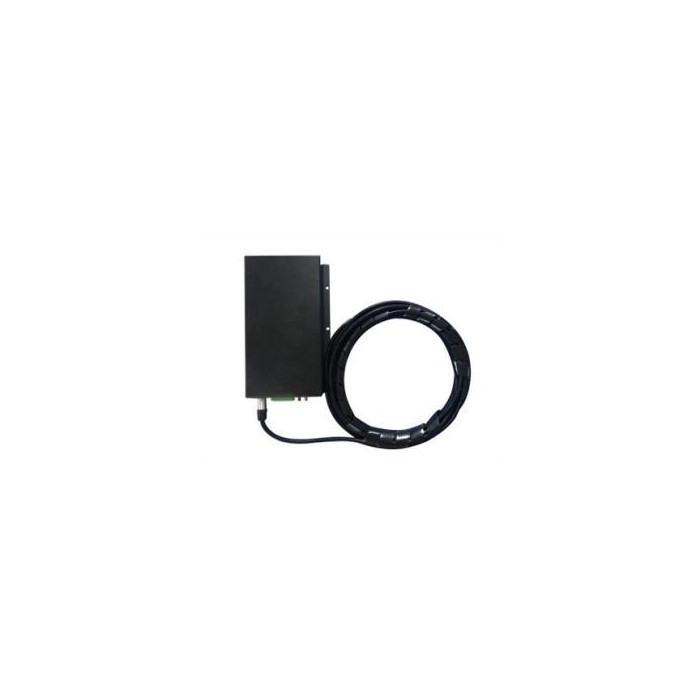

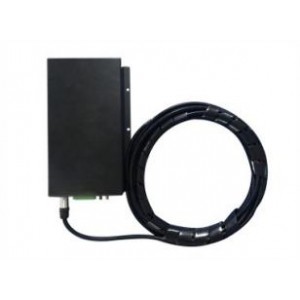

Collector size (W×H×D)

410mm×450mm×135mm

Collector weight

12.6kg

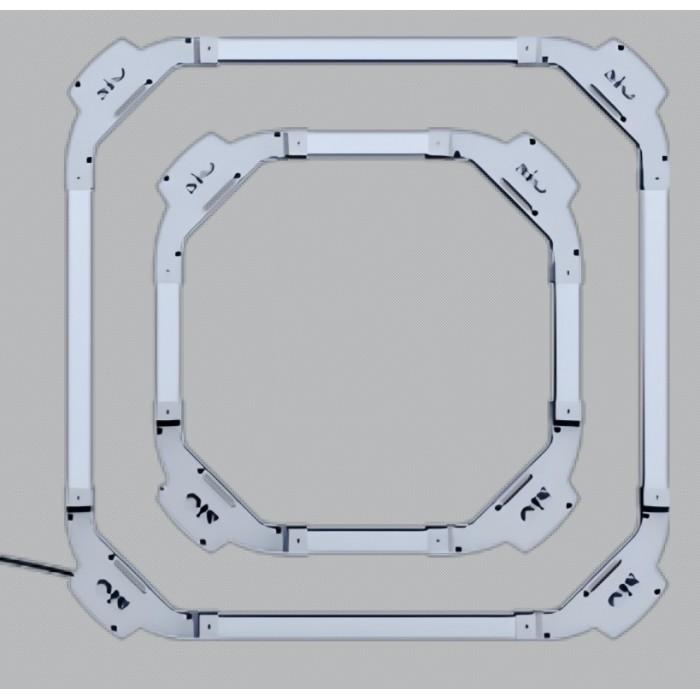

Sensing ring size

9 standard and customized sizes

Sensing ring weight

＜15kg

Sensor fiber length

15/20/30/45/70/100m

Also, there is avaiable an integrated solution that offers simultaneous measurement on up to five channels. it features both fixed and flexible sensor heads, making it versatile for installation either temporarily or permanent on the busbar. This sensor is particularly applicable in scenarios with limited space and multiple measurement points, providing a reliable and flexible solution for current measurement in various applications.

Key Features

Immunity to Stray Magnetic Fields, High Integration, Convenient Maintenance, Versatile Application

Application area

The FS206 is commonly used in power grids, renewable energy installations, metal smelting, and other scenarios that require precise and reliable AC or/and DC current measurement

Technical indicators

Full-scale rated current (Ir)

up to ±300kA

Overcurrent capacity

20%

Max. measurement current

±360kA

 (Including overcurrent)

Bandwidth (-3dB）

3kHz

Response Time

300ms

Accuracy (10% to 120% Ir)

±0.2%

Linearity (10% to 120% Ir)

±0.1%

Repeatability

±0.05%

Temperature sensitivity

＜±0.002%/℃



Sensor outputs

Analog outputs of Ir (unipolar)

0..20 mA and 0..10V

or 4..20 mA and 2..10V

Analog outputs of Ir (bipolar)

±20mA and ±10V

Bus communication

Modbus RTU

Relays

1 Changeover contact per channel
for alarms / trip signaling (optional)



Ambient conditions

Sensor head temperature range

0°C to +80°C

Secondary converter temperature rang

-5°C to +55°C

System storage temperature range

-30°C to+70°C

Relative humidity

5% to 90%

Altitude

＜4000m



Power supply

Operation power

AC 100V~240V 50Hz/60Hz

DC 110V~240V

Power consumption

Less than 10W per each channel

(50W for 5-channel system configuration)



Ingress protection class

Secondary Converter Enclosure

IP 30

FO cable and sensor head

IP 67



Physical features

Secondary converter

dimensions (W×H×D)

483mm×177mm×291mm

Sensor head

O0/O1/O2/O3

Sensor head weight

Size dependent, less than 15kg

Sensor fiber length

15m/20m/30m/45m/70m/100m
