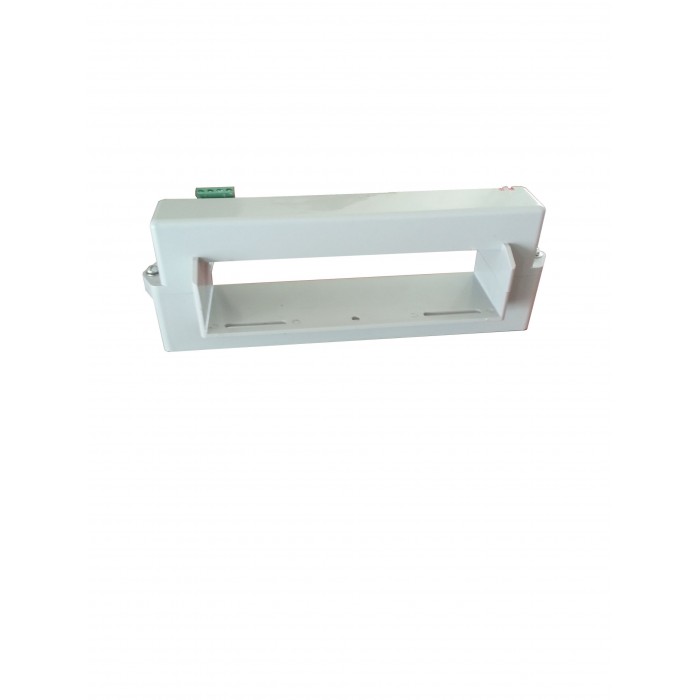

ZTGK8-8000A  Hall Current Sensor



 ZHGK Hall current sensor adopts the current detection device developed by Hall direct measurement principle. Can measure DC, AC, pulse, and various irregular currents. Can be used for rectifier power supply, switching power supply, electroplating power supply, electric arc furnace, calcium carbide furnace, refining furnace, ferroalloy furnace, such as smelting production transformer secondary side strong current measurement.

Features:

  • Hall principle open-loop current sensor
  • Adopting insulation shell that complies with UL94V-0 standard
  • Passed CE certification (number)



Application:



  • Rectifier power supply
  • Switching power supply
  • Welding machine power supply
  • Battery power supply
  • Variable frequency speed regulation
  • Uninterruptible power supply
  • Railway system
  • Circuit system



Instructions for Use:



  • The sensor is wired correctly according to the requirements

The tested busbar passes through the sensor hole and is fixed in the center

  • The direction indicated by the arrow is the positive current direction



Electrical Parameters (Ta=25℃)

Model

Spec.

Symbol

ZTGK8-4000A

ZTGK8-6000A

ZTGK8-8000A

Rated measurement current

IPN

4000A

6000A

8000A

Measuring current range

IP

0~±6000A

0~±8000A

0~±10000A

Rated output voltage

VSN

±4V ±5V ±1% (RL≥1KΩ)

Zero offset voltage

Vo

≤±0.005V(IPN=0)

Zero temperature drift

VoT

≤±1mV/℃

Linear error

EL

±1%

Response time

Tr

≤20μS

Power supply voltage

Vc

±12V、 ±15V±1%

Insulation voltage

Vd

5KV, 50/60H z / 1m i n

Power consumption current

Ic

30mA

Frequency bandwidth

f

DC~50KHz(-3dB)

Operating temperature

Ta

-25℃~+80℃

Storage temperature

Ts

-40℃~+90℃

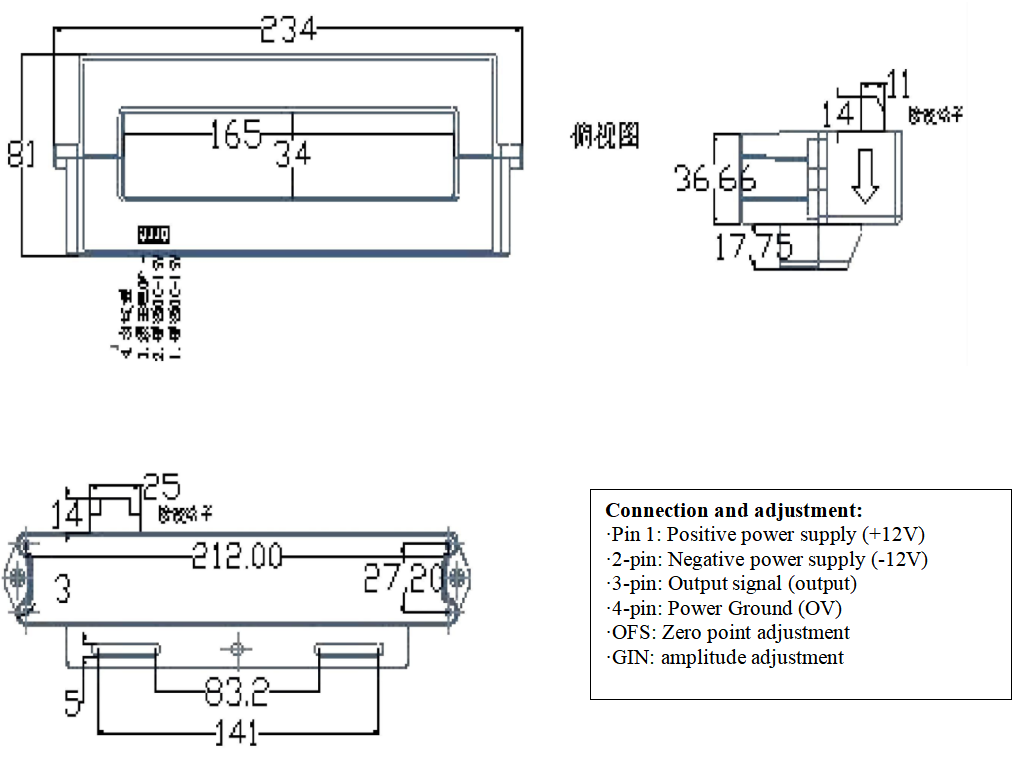

Dimension

ZTGK8-8000A  Hall Current Sensor





OEM Dimension is available
