DC voltage transducer

CHZ-100V, 200V, 300V, 400V, 500V



Sensor Module

CHZ-100V200V300V400V500V

Description

The SENSOR Module CHZ-V is a DC voltage transducer to measure 100V…500V DC voltages with a galvanic isolation between the primary and secondary circuits. The output of the transducer is a standard DC signal.



DC Voltage TransducerOutput 0…20mA:

Type

Nominal voltage

Output current

Accuracy

Supply voltage

Aperture

VN(V)

IM(mA)

X(%)

Vc(V)

mm

CHZ-100V/A0

100

0…20

±1.0%

±15~24

Terminals

CHZ-200V/A0

200









CHZ-300V/A0

300









CHZ-400V/A0

400









CHZ-500V/A0

500











DC Voltage TransducerOutput 4…20mA:

Type

Nominal voltage

Output current

Accuracy

Supply voltage

Aperture

VN(V)

IM(mA)

X(%)

Vc(V)

mm

CHZ-100V/A1

100

4…20

±1.0%

±15~24

Terminals

CHZ-200V/A1

200









CHZ-300V/A1

300









CHZ-400V/A1

400









CHZ-500V/A1

500











DC Voltage TransducerOutput 0…5V:

Type

Nominal voltage

Output voltage

Accuracy

Supply voltage

Aperture

VN(V)

VM(V)

X(%)

Vc(V)

mm

CHZ-100V/V0

100

0…5

±1.0%

±15~24

Terminals

CHZ-200V/V0

200









CHZ-300V/V0

300









CHZ-400V/V0

400









CHZ-500V/V0

500











DC Voltage TransducerOutput 1…5V:

Type

Nominal voltage

Output voltage

Accuracy

Supply voltage

Aperture

VN(V)

VM(V)

X(%)

Vc(V)

mm

CHZ-100V/V1

100

1…5

±1.0%

±15~24

Terminals

CHZ-200V/V1

200









CHZ-300V/V1

300









CHZ-400V/V1

400









CHZ-500V/V1

500











Specifications:

Principle

Hall effect sensor + Transducer

Input voltage

100V…500V(DC)

Output

One of A0=0~20mA、A1=4~20mA、V0=0~5V、V1=1~5V(DC)

Frequency

DC

Accuracy

1.0%

Response time

<0.35S

Linearity

0 .5%

Supply voltage

±15V…24V(±5%)

Consumption

30mA+IM(Output current)

Isolation voltage

Between primary and secondary circuit: 6KV RMS/50Hz/1min.

Operating temp.

-25℃ …+85℃

Applications

The sensors are used in the industry field of power supplies, welding machines, converters,



industry auto-control, motor drives, electronic power system, railways, rectifiers systems etc.

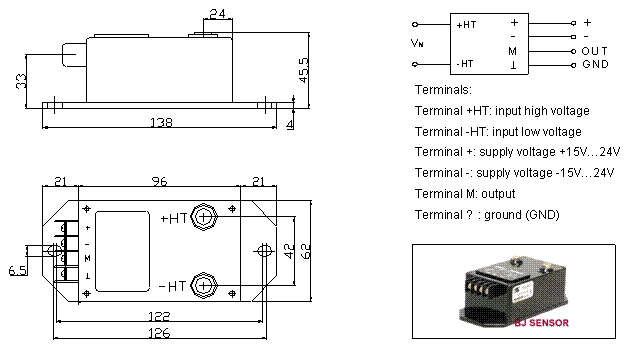

Dimensions(mm) & Connection:
