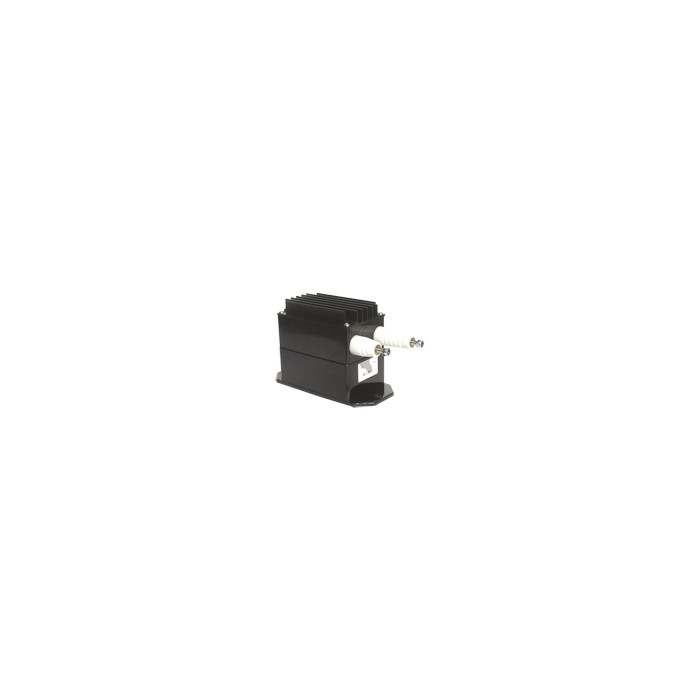

CHY-1000VT, 2000VT, 3000VT AC voltage transducer

CHY-1000VT, 2000VT, 3000VT AC voltage transducer

CHY-1000VT, 2000VT, 3000VT AC voltage transducer

Input

1000V…3000V

Output

As per your request

Φ

…mm

Email: sales@zntar.com, zntarjason@gmail.com

More details


AC voltage transducer

CHY-1000VT, 2000VT, 3000VT



Sensor Module

CHY-1000VT2000VT3000VT

Description

The SENSOR Module CHY-VT is an AC voltage transducer to measure 1000V…3000V (50Hz/400Hz) AC voltages with a galvanic isolation between the primary and secondary circuits. The output of the transducer is a standard DC signal.



AC Voltage TransducerOutput 0…20mA:

Type

Nominal voltage

Output current

Accuracy

Supply voltage

Aperture

VN(V)

IM(mA)

X(%)

Vc(V)

mm

CHY-1000VT/A0

1000

0…20

±0.5%

15~24

Terminals

CHY-2000VT/A0

2000









CHY-3000VT/A0

3000











AC Voltage TransducerOutput 4…20mA:

Type

Nominal voltage

Output current

Accuracy

Supply voltage

Aperture

VN(V)

IM(mA)

X(%)

Vc(V)

mm

CHY-1000VT/A1

1000

4…20

±0.5%

15~24

Terminals

CHY-2000VT/A1

2000









CHY-3000VT/A1

3000











AC Voltage TransducerOutput 0…5V:

Type

Nominal voltage

Output voltage

Accuracy

Supply voltage

Aperture

VN(V)

VM(V)

X(%)

Vc(V)

mm

CHY-1000VT/V0

1000

0…5

±0.5%

15~24

Terminals

CHY-2000VT/V0

2000









CHY-3000VT/V0

3000











AC Voltage TransducerOutput 1…5V:

Type

Nominal voltage

Output voltage

Accuracy

Supply voltage

Aperture

VN(V)

VM(V)

X(%)

Vc(V)

mm

CHY-1000VT/V1

1000

1…5

±0.5%

15~24

Terminals

CHY-2000VT/V1

2000









CHY-3000VT/V1

3000











Specifications:

Principle

Transducer

Input voltage

1000V…3000V(AC)

Output

One of A0=0~20mA、A1=4~20mA、V0=0~5V、V1=1~5V(DC)

Frequency

50Hz(400Hz)

Accuracy

±0.5%

Response time

<0.35S

Linearity

<0.5%

Supply voltage

15V…24V(±5%)

Consumption

30mA+IM(Output current)

Isolation voltage

Between primary and secondary circuit: 10KV RMS/50Hz/1min.

Operating temp.

-25℃ …+85℃

Applications

The sensors are used in the industry field of power supplies, welding machines, converters,



industry auto-control, motor drives, electronic power system, railways, rectifiers systems etc.



Dimensions(mm) & Connection:

 AC voltage transducer CHY-1000VT
