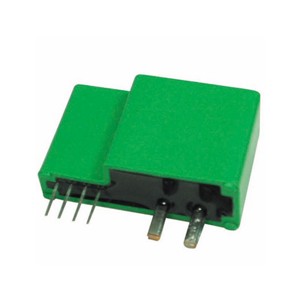

SD20 DC Current Transducer

SD20 DC Current Transducer

SD20 DC Current Transducer

Input

0~15A

Output

As per your request

Φ

…..mm

Email: sales@transducersgroup.com

More details


SD20 DC Current Transducer



*Hall open-loop operational principle, can measure current in any waveform, the output terminal can reflect the waveforms parameters of input current
*Controlled by temperature compensation circuit, measure accurately
*Pin input, PCB pin plane mounting
*It widely applies to all kinds of industrial current online detection system
*Small size, dimension(mm)：35(L)×12(W)×22(H)

Specification：

*Standards:IEC688:1992, QB/LF2007-1

*Input Range:0~15A can choose 0~5A, 0~10A etc

* Accuracy Grade:≤1.0%.F.S

* Linearity Degree:better than 0.2%

* Response Time: ≤10Us

* Frequency: 0~10KHz

* Offset Voltage: ≤20mV

* Temperature Characteristics: ≤150PPM/℃(0~50℃)

* Power Consumption：≤30mA

* Isolation Withstanding Voltage:AC2.0KV/min*1mA between input/output/power

* Load Capacity:2 times current continuous, 30 times 1 second

* Flame Retardancy:UL94-V0

* Working Environment:-10℃~50℃,20%~90% without condensation

* Storage Environment:-40℃~70℃,20%~95% without condensation

Model：

A--- Output
1: 0~5V tracking output
1a: 0~4V tracking output
3:0~5V
4:0~20mA
5:4~20mA
T: Special output
B---Power supply
5: ±12V±10%
6: ±15V±10%
C---Current input range

Model selection1: LF-DI12-15D20-1.0/0~10A
Explanation: this product is a 0~10A input range, 0~5V tracking output,
±12V power supply, D20 style 1-way pin DC current transducer.

Dimension：

Connection:
