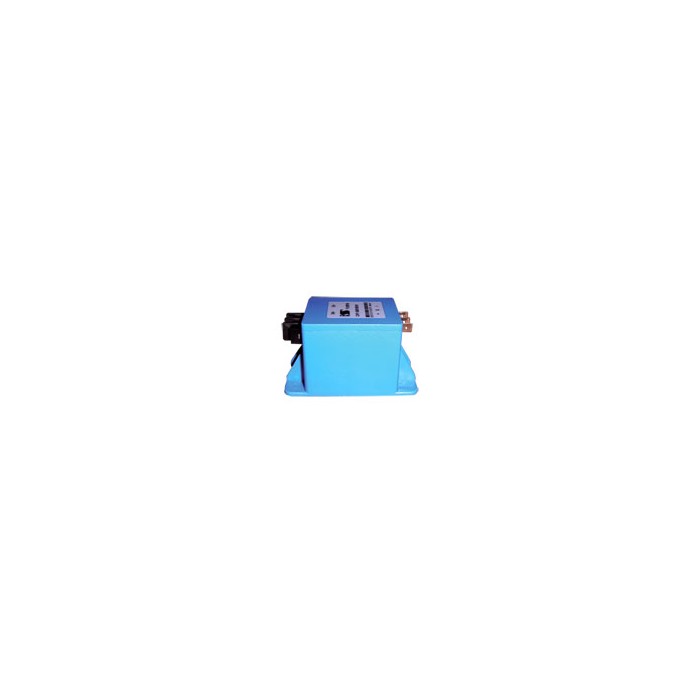

SCHY-100VS, 200VS, 300VS, 400VS, 500VS AC voltage transducer

SCHY-100VS, 200VS, 300VS, 400VS, 500VS AC voltage transducer

SCHY-100VS, 200VS, 300VS, 400VS,

500VS AC voltage transducer

Input

100V…500V

Output

As per your request

Φ

…mm

Email: sales@zntar.com, zntarjason@gmail.com

More details


AC voltage transducer

CHY-100VS, 200VS, 300VS, 400VS, 500VS



Sensor Module

CHY-100VS200VS300VS400VS500VS

Description

The SENSOR Module CHY-VS is an AC voltage transducer to measure 100V…500V (50Hz/400Hz)AC voltages with a galvanic isolation between the primary and secondary circuits. The output of thetransducer is a standard DC signal.



AC Voltage TransducerOutput 0…20mA:

Type

Nominal voltage

Output current

Accuracy

Supply voltage

Aperture

VN(V)

IM(mA)

X(%)

Vc(V)

mm

CHY-100VS/A0

100

0…20

±1.0%

15~24

Terminals

CHY-200VS/A0

200









CHY-300VS/A0

300









CHY-400VS/A0

400









CHY-500VS/A0

500











AC Voltage TransducerOutput 4…20mA:

Type

Nominal voltage

Output current

Accuracy

Supply voltage

Aperture

VN(V)

IM(mA)

X(%)

Vc(V)

mm

CHY-100VS/A1

100

4…20

±1.0%

15~24

Terminals

CHY-200VS/A1

200









CHY-300VS/A1

300









CHY-400VS/A1

400









CHY-500VS/A1

500











AC Voltage TransducerOutput 0…5V:

Type

Nominal voltage

Output voltage

Accuracy

Supply voltage

Aperture

VN(V)

VM(V)

X(%)

Vc(V)

mm

CHY-100VS/V0

100

0…5

±0.5%

15~24

Terminals

CHY-200VS/V0

200









CHY-300VS/V0

300









CHY-400VS/V0

400









CHY-500VS/V0

500











AC Voltage TransducerOutput 1…5V:

Type

Nominal voltage

Output voltage

Accuracy

Supply voltage

Aperture

VN(V)

VM(V)

X(%)

Vc(V)

mm

CHY-100VS/V1

100

1…5

±0.5%

15~24

Terminals

CHY-200VS/V1

200









CHY-300VS/V1

300









CHY-400VS/V1

400









CHY-500VS/V1

500











Specifications:

Principle

Transducer

Input voltage

100V…500V(AC)

Output

One of A0=0~20mA、A1=4~20mA、V0=0~5V、V1=1~5V(DC)

Frequency

50Hz(400Hz)

Accuracy

±0.5%~1.0%

Response time

<0.35S

Linearity

<0.5%

Supply voltage

15V…24V(±5%)

Consumption

30mA+IM(Output current)

Isolation voltage

Between primary and secondary circuit: 2.5KV RMS/50Hz/1min.

Operating temp.

-25℃ …+85℃

Applications

The sensors are used in the industry field of power supplies, welding machines, converters,



industry auto-control, motor drives, electronic power system, railways, rectifiers systems etc.



Dimensions(mm) & Connection:

 AC voltage transducer CHY-100VS
