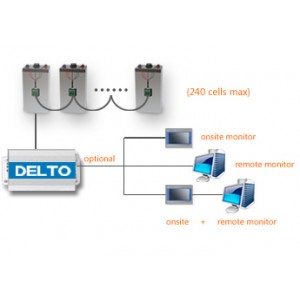

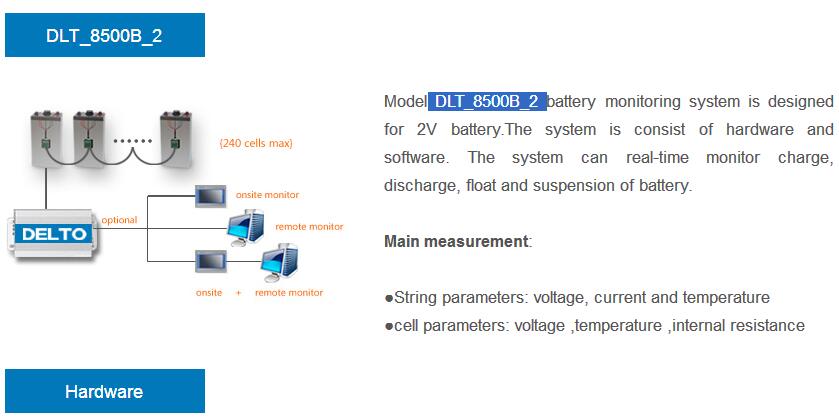

2V Battery Monitoring System

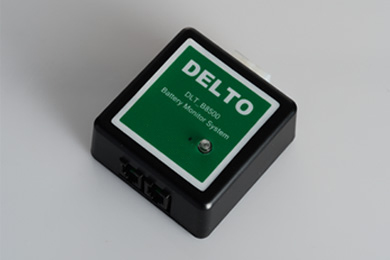

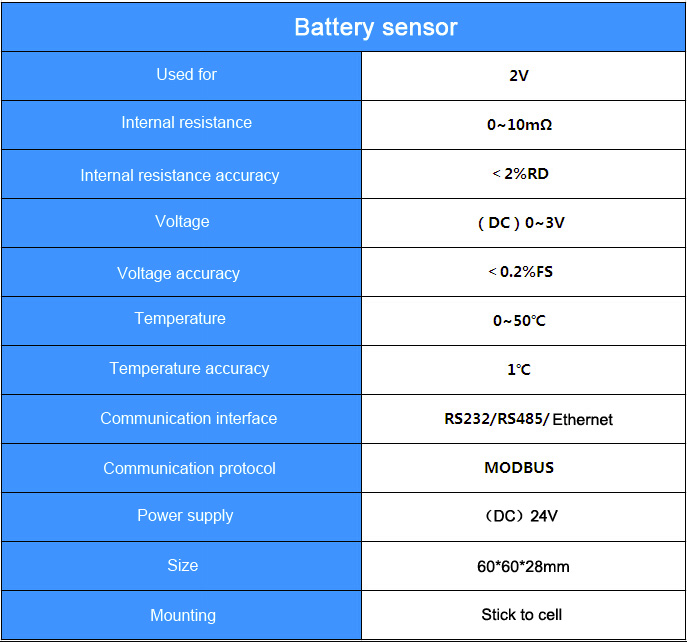

Battery Sensor
Real-time monitor and measure the voltage, internal resistance and temperature, and transmit the data through the overall strings.
String parameters : voltage,current, working temperature .
Cell parameters : voltage and shell temperature .
Special parameters: cell internal resistance

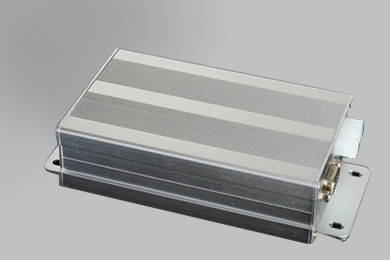

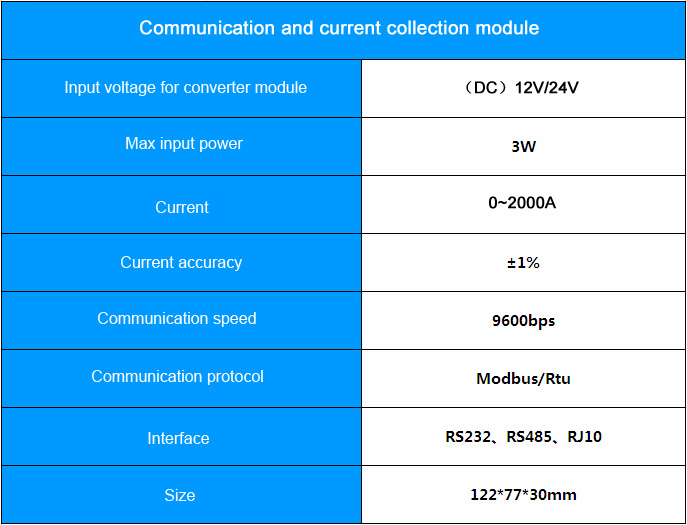

Communication and current collection module
Communication and current collection module: designed to test the current, collect and process data; communicate with display module or external PC ,and transfer data.

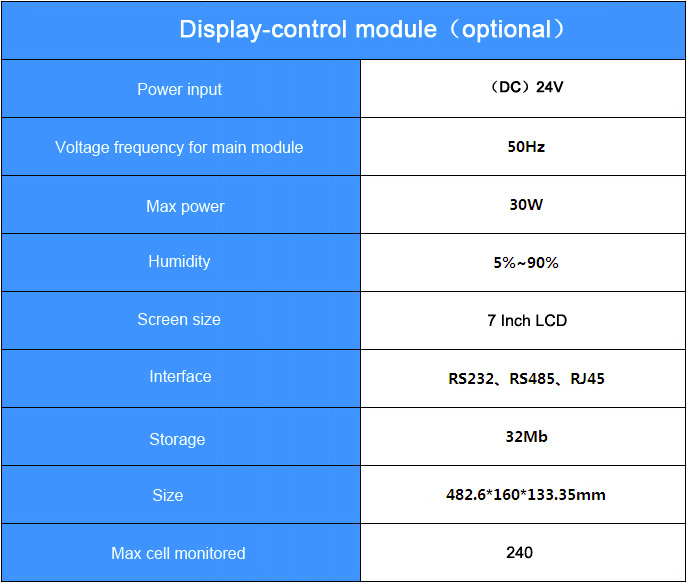

Display module（optional）
Display module（optional）: provide human-computer interaction，display and control systems through interface ,data was transferred by modbus
.jpg "Display module 2")
Accessories
Wires for test —used for connecting the sensor and positive and negative poles, a touch gasket and temperature sensor.
Wires for Communication : to connect batteries and transfer the data between the sensor and communication module.
power wire(if no 24V power, the power module is need to transfer the 220V to 24V).
Post terminal gasket
